RM5,200.00

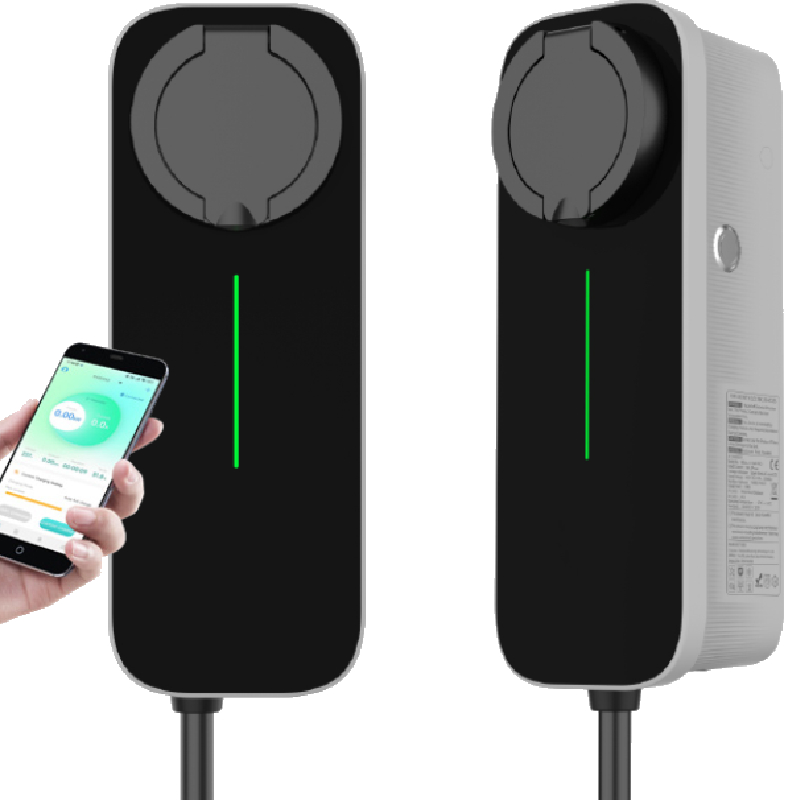

Socketed 7.2kW EV charger
Socketed 22kW EV charger
| Model | BS30 – 7.2kW – APP, BS30 – 22kW – APP |
|---|
| Category | Specification | Details | |
|---|---|---|---|
| General Specifications | Model | BS30 – 7.2kW – APP | BS30 – 22kW – APP |
| Charger Type | AC (Alternating Current) | ||
| Output Power | 7.2kW | 22kW | |
| Warranty | 2 years | ||
| Standards Compliance | CE | ||
| Electrical Specifications | Input Voltage / Output Voltage | AC 230V / 400V | |
| Input Frequency | 47~63Hz | ||
| AC Power Output Rating | Up to 7.2kW | Up to 22kW | |
| Max. Output Current | 32A 1ph | 32A 3ph | |
| Connector Type | IEC 62196-2 | ||
| Mechanical Specifications | Dimensions (L x W x D) | 325mm x 120mm x 87mm | |
| Weight | 3.5 kg | ||
| Mounting Method | Wall-Mounted / Ground-mounting Pole | ||
| Connectivity | Current Adjusting | Yes | |
| LED Indicator Light | Yes | ||
| Start Charging by Button | Yes | ||
| Protection & Safety | Ingress Protection (IP Rating) | IP66 | |
| Electrical Protection | Under Voltage Protection, Over Load Protection, Short Circuit Protection, Earth Leakage Protection, Over-temp Protection, Lightning Protection | ||
| RCD Type | Type A / Type A+6mA DC | ||
| Environmental Specifications | Operating Temperature | -25°C to 55°C | |
| Functionality | Current Adjusting | Yes | |
Delivering Innovative And Sustainable Solutions To All Our Customers.
Don’t want to fill it out? Call us instead at 07-599 2111, and we’ll help you determine which charger is suitable for you!
